Recently Updated! Quicksilver Audio Mid Mono Amps up to 50WPC! Separate Biasing Controls for each Output Tube, - $1995. Black Transformer Covers, Chrome Transformer Covers $2219.

"The Quicksilver Mid Mono is a great amp from a great company and a super value." Sam Tellig, Stereophile, August 2003.

Quicksilver’s Mid Mono amplifier is completely hand-wired and can use many different output tubes;  the Mid Mono has a low loss output transformer, adjustable bias for each Output Tube. and five-way gold-plated binding posts. Setting the bias is very simple: two screwdriver controls and pin jacks for any multimeter that reads millivolts. Power is 40 watts at 50% triode operation with standard EL34s or KT88s, 45 watts with KT120s and 50 watts with KT150s.

Specs Below
Includes EL34 Tubes - Output 40WPC
KT150 Tubes Not Included!

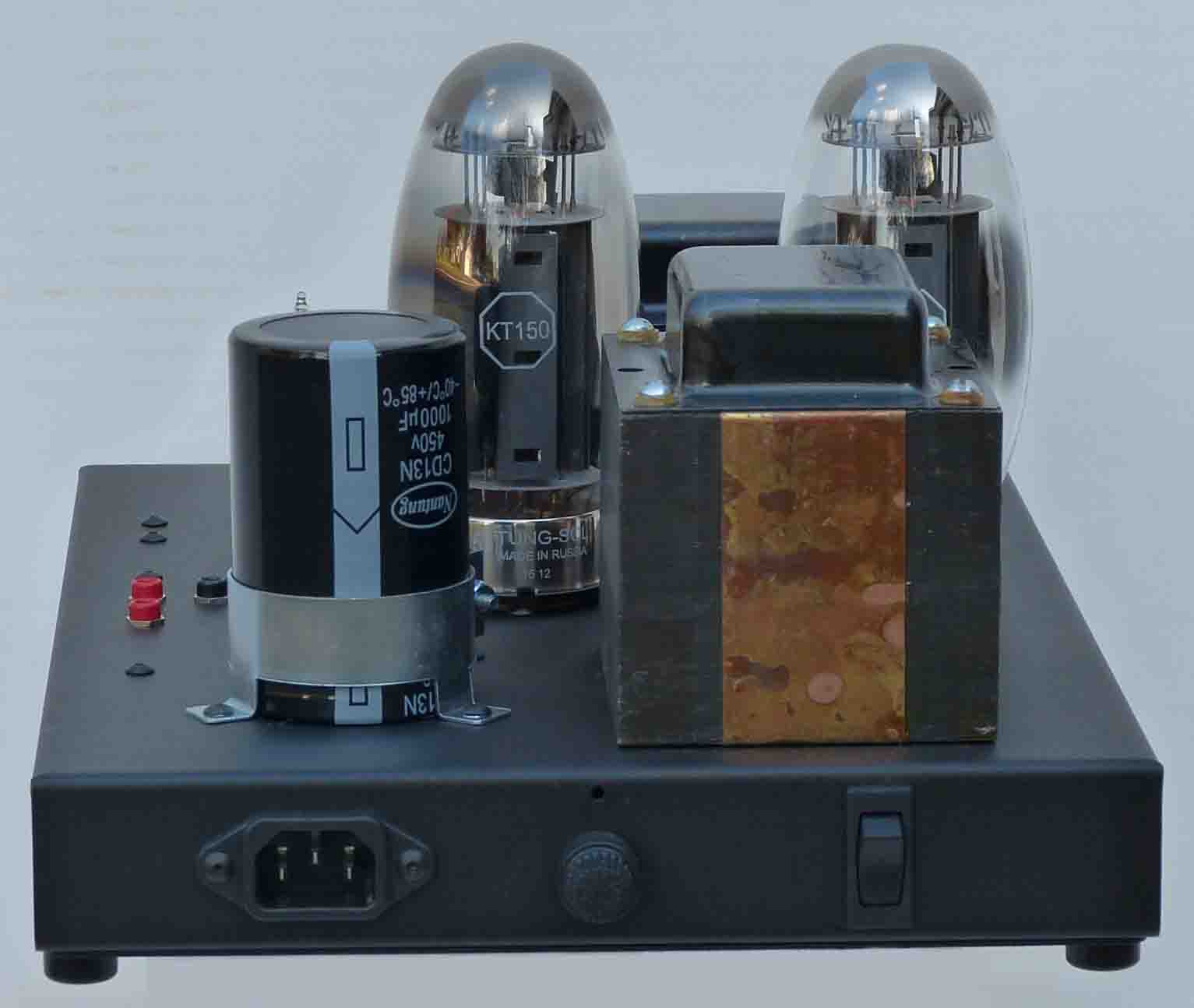

Quicksliver Audio Mid Mono Revised Version

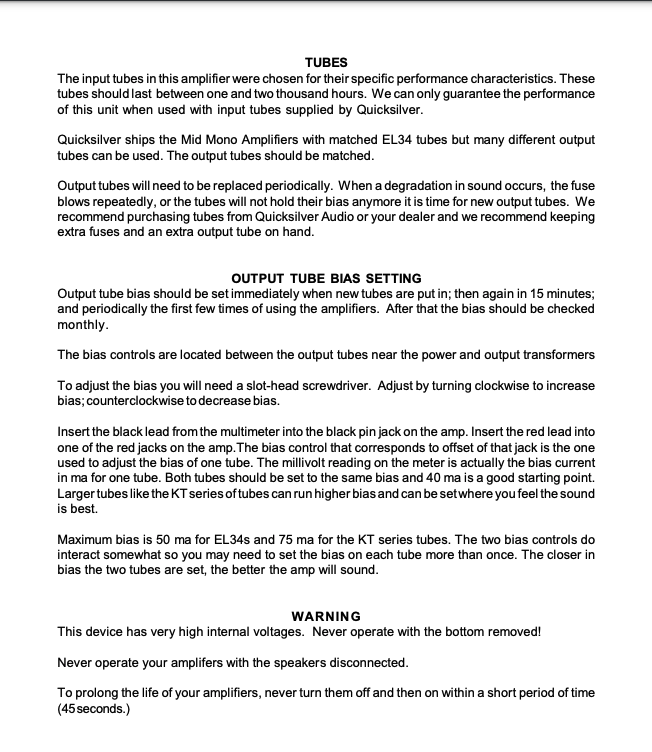

Tube Biasing Procedure

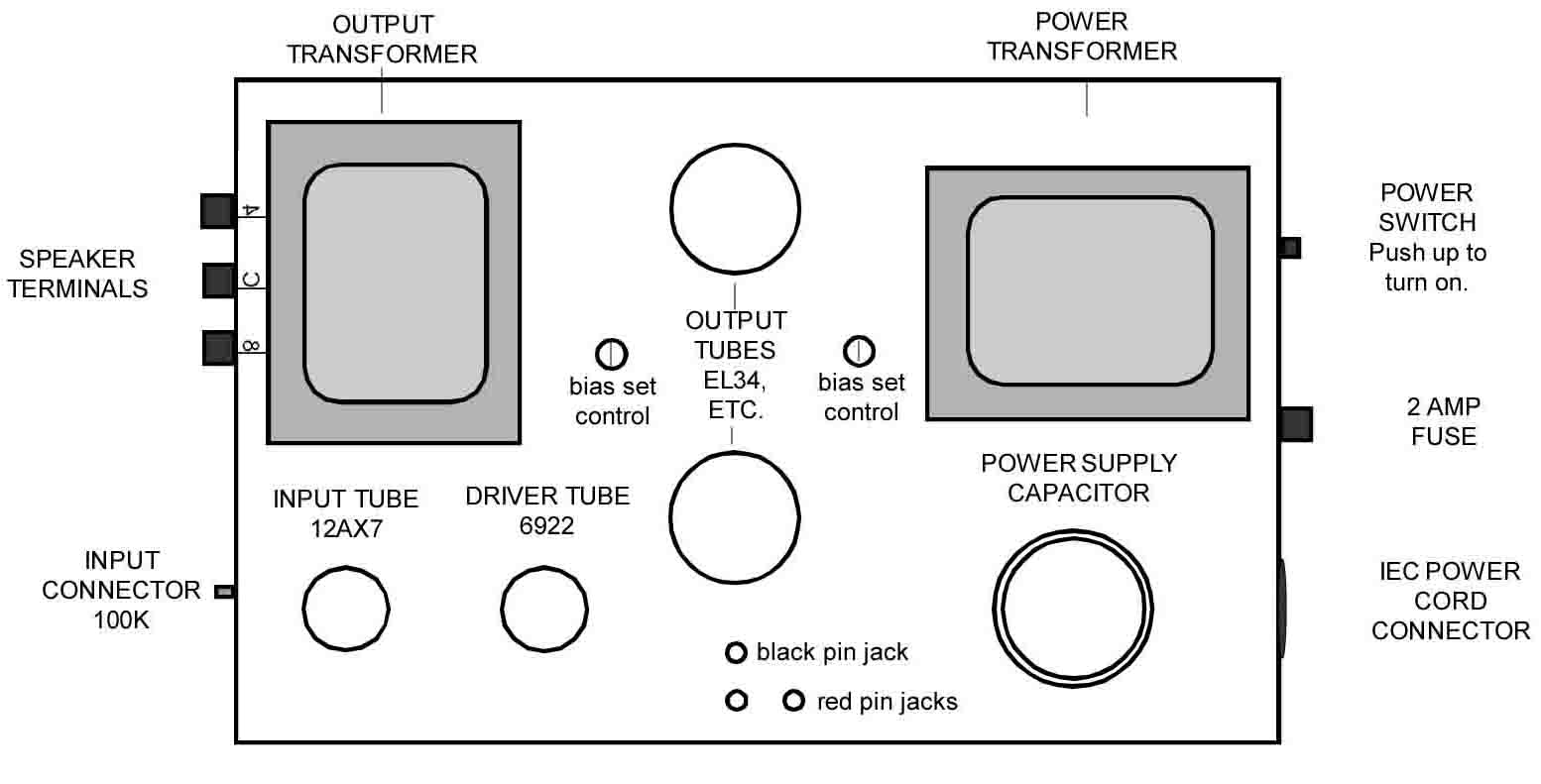

Quicksliver Audio Mid Mono Revised Version Specs

"The Quicksilver Mid Mono is a great amp from a great company and a super value." Sam Tellig, Stereophile, August 2003.

Quicksilver’s Mid Mono amplifier is completely hand-wired and can use many different output tubes;  the Mid Mono has a low loss output transformer, adjustable bias, and five-way gold-plated binding posts. Setting the bias is very simple: two screwdriver controls and pin jacks for any multimeter that reads millivolts. Power is 40 watts at 50% triode operation with the standard EL34s or KT88s, 45 watts with KT120s and 50 watts with KT150s.

Specifications:

Power Output           40 watts into 4 or 8 ohms

Power Bandwidth      16 Hz to 35 KHz

Input Sensitivity       1.25 volts

Input Impedance      100 K ohms

Power Consumption  105 watts at idle, 210 watts at full power

Tube Complement    1 12AX7 input
                              1 6922 driver
                              2 EL34 outputs

Finish                      Black chassis


                              Chrome transformer covers

Dimensions              5 1/2"H, 14 1/2"D, 9 1/8"W


Weight                    26 lbs., 30 lbs. shipping weight


U.S. Warranty          3 years parts and labor
                              Tubes 90 days
